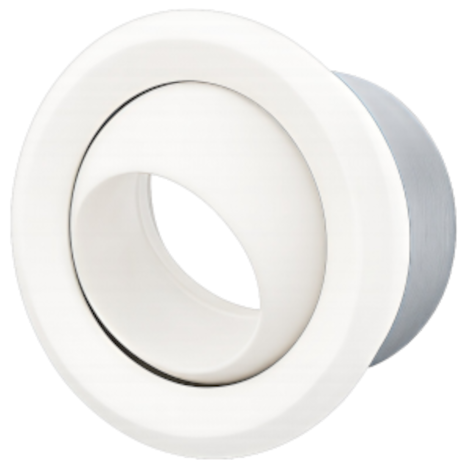

VS-5 round long throw jet diffuser

The long throw jet diffuser is suitable for providing cold and warm air at high throw distances and low sound power levels. The throw distance is further enhanced when combining multiple nozzles into groups. Installation can be done in multiple ways.

Request

VS-5

Product Round long throw jet diffuser Finish Long throw jet diffuser made of aluminium, naturally anodized in E6-EV1 Flow rate variable Sizes 100, 125, 160, 200, 250, 315, 400

Function and effect

The long throw jet diffuser VS-5 is adjustable. The air flow can be adjusted as follows:


The nozzle adjustment depends on the temperature of the supply air. The supply nozzle is integrated into the housing and does not stand out by more than 45 mm at the largest size (400).



Accessories and optional finishes
