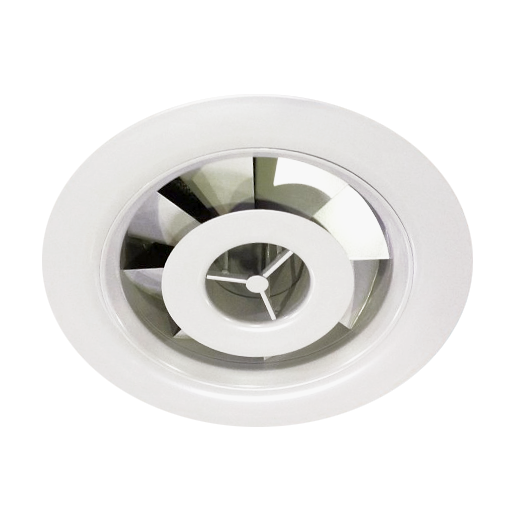

SDZ adjustable swirl diffuser

The SDZ is a swirl diffuser with an adjustable cylindrical swirl insert and diffuser. The diffuser is especially well suited for operation in large-scale rooms for cooling and heating. The operation requires either a direct connection to the duct system or connection to a plenum box.

Request

SDZ

Product Adjustable swirl diffuser Finish Steel, powder-coated, RAL-coloring of your choice Flow rate 450 m³/h - 11000 m³/h Sizes 315, 400, 500, 630, 710

Function and effect

Depending on the build size and the flow rates the diffuser is suitable for mounting heights of 3 to 15 meters. The air flow can be adjusted from horizontal to vertical by moving the interior nozzle to the exterior nozzle. This way it is also possible to adjust the jet-lengths to fit specific room geometry. The adjustment of the air flow can be done manually or motor-driven.



Accessories and optional finishes
